Poor Boy Degasser | Mud Gas Separator | 320m³/h Capacity | Oilfield Drilling Gas-Buster System
Product Overview

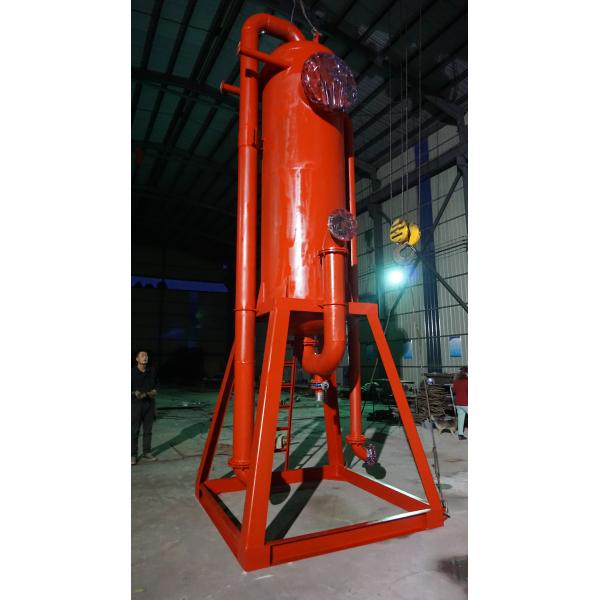

The TRZYQ Series Mud Gas Separator, commonly known as a Poor Boy Degasser or Gas-Buster, is essential safety equipment in oilfield drilling operations. Its primary function is to rapidly capture and separate large volumes of free gas from drilling mud, particularly during hazardous conditions known as "kicks." By effectively guiding drilling fluids over internal baffle plates, the gas is safely separated and vented to a flare system, ensuring operational safety and environmental compliance.
The separator works by increasing the exposed surface area of drilling mud as it impacts internal baffle structures. Gas bubbles are efficiently broken, separated from the mud, and safely discharged. Combined with our flare ignition system, the TRZYQ series ensures smooth, uninterrupted drilling processes.
Key Features of TRZYQ Mud Gas Separator
- High Efficiency Gas Separation: Quickly separates large volumes of free gas, including toxic gases such as H₂S, from drilling mud.
- Skid-Mounted & Trailer-Compatible: Designed for easy transport, installation, and relocation on drilling sites.
- Reliable Gas Discharge System: Safely transports separated gases to flare lines for controlled combustion in designated safe areas.
- Adjustable Configuration: Piping configurations can be easily adjusted vertically, minimizing installation complexity.
- Safety Control Valve: Equipped with a fail-safe back-pressure manifold valve, ensuring stable and controlled gas release.
Technical Parameters
| Model | TRZYQ800 | TRZYQ1000 | TRZYQ1200 |
| Capacity | 180 m³/h | 240 m³/h | 320 m³/h |
| Main Body Diameter | 800 mm | 1000 mm | 1200 mm |
| Inlet Pipe | DN100 mm | DN125 mm | DN125 mm |
| Outlet Pipe | DN150 mm | DN200 mm | DN250 mm |
| Gas Discharge Pipe | DN200 mm | DN200 mm | DN200 mm |
| Weight | 1750 kg | 2235 kg | 2600 kg |
| Dimension (mm) | 1900×1900×5700 | 2000×2000×5860 | 2200×2200×6634 |
Applications
The TRZYQ mud gas separator is extensively used in:
- Oil & Gas drilling operations (onshore & offshore)
- Coal Bed Methane (CBM) drilling systems
- Trenchless Horizontal Directional Drilling (HDD)
- Drilling Waste Management solutions
- Bored piling operations
- Oil sludge dewatering and treatment
- Environmental remediation and protection projects
Why Choose TR SolidsControl?
- Competitive Pricing: Premium quality equipment at industry-leading prices.
- Fast Delivery: Rapid turnaround to meet urgent project timelines.
- Flexible Payment Terms: Customized payment solutions available.
- Responsive After-Sales Service: Prompt technical assistance and customer support.
- International Compatibility: Equipment fully interchangeable with major global brands.
- Global Market Presence: Proven reliability in markets across North America, Middle East, Europe, South America, Africa, Asia, and Australia.
TR SolidsControl consistently strives to deliver the best quality equipment and exceptional service to our global customers, building strong partnerships based on trust and reliability.
